If it measured over two inches you will need to extend the push rod length. This will cause your soft pedal.
Thesamba Com Type 3 View Topic Brake Pushrod Length
Brake push rod length. Turn the adjusting nut on the push rod inward or outward to shorten or lengthen the rod. From mark 1 measure back toward the brake chamber mounting surface in accordance with chart a x dimension make a second mark and cut the push rod at mark 2 see figure 1. If you cant make adjustments onto the push rod itself you can use a shim to shorten the rod. You will need to use pliers for the push rod to be adjusted accordingly. Remember your free play travel length on your brake pedal. 4 adjust the push rod to access the push rod the cylinder needs to be disconnected first.
Measure the distance from the centerline of the s cam to the centerline of the push rod see figure 2 dimension athis measurement should be equal to the length of the brake. Turns out my push rod needed adjusted. See figure 1 mark 1. Using a square mark the push rod at the 90 setting from centerline of s cam shaft to push rod. Install the appropriate style. Master power brakes recommends that the distance between the pin from the booster and the hole in your master cylinder be approximately 0020.
If the a dimension on a type 30 installation measured 5 inches and the yoke. Pedal is more firm now and brakes much better. White logo shirt https. Again mark the rod. No preloaded like mentioned above a scant amount of play to about 116 good to have a little play in the pedal to booster also a vacuum plug on the brake light switch will keep it from rattling. If this distance is greater than 0020 when you first push the pedal you will have to overcome this distance and get the pin to the master cylinder.

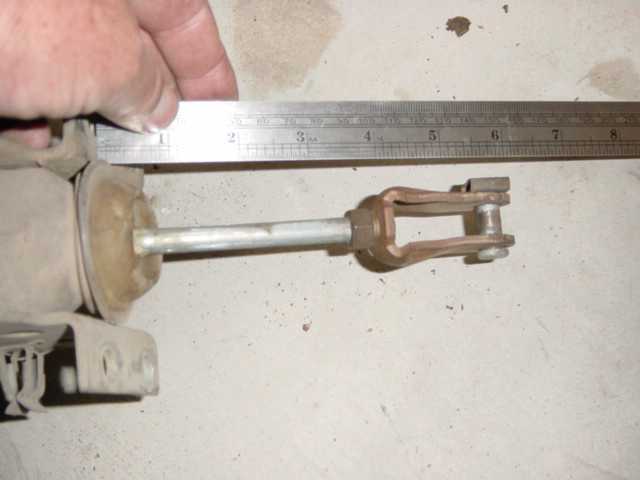

Have your assistant gently apply the brakes to force the push rod out of the booster so you can see the adjusting nut. This will determine the proper length of the push rod prior to installation of the yoke and will assure a push rod to slack adjuster angle greater than 90 with the chamber at zero 0 stroke. My brake pedal was super soft after a brake booster replacement. The push rod has a nut which can be turned outward or inward to increase or decrease its length. In most cases the length will be roughly020. Place the brake chamber into the appropriate brake assembly bracket.
Tighten the holding nuts to the bracket studs 100140 lb. If the rod is already too short remove the original shims. Onto the push rod b.
