Lastly connect the blue wires together or the blue wire to the black wire for lights. Hang the ceiling fan in the bracket.
Wazipoint Engineering Science Amp Technology Celling Fan

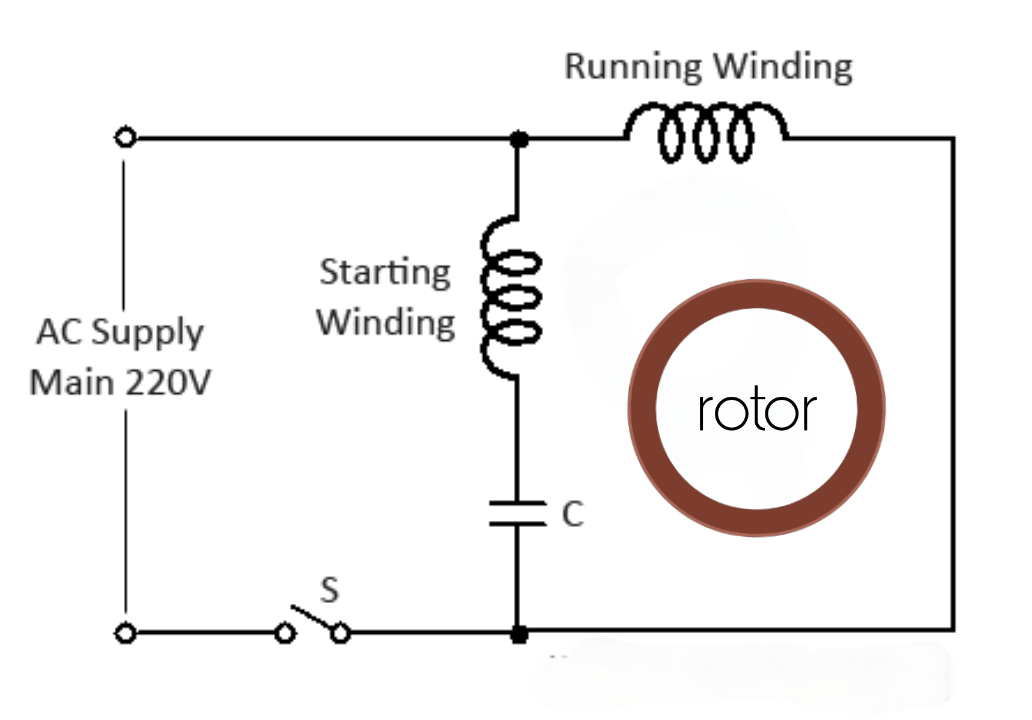

Ceiling fan connection diagram. Here a simple spst switch is used to supply power or not to the fan motor and a regulator is used to controlling the fan speed. To be noted that the wiring diagram is for ac 220v single phase line with single phase ceiling fan motor. Take a closer look at a ceiling fan wiring diagram. You can interchange or replace the color of live wire if you have multiple devices connected though the same path or at the same place. Whether it be a hampton bay hunter or another brand of ceiling fan many fans have the same setup in terms of installation. This wiring diagram illustrates the connections for a ceiling fan and light with two switches a speed controller for the fan and a dimmer for the lights.
Slide the top of the ceiling fan into the groove in the bracket and hang it. From the switches 3 wire cable runs to the ceiling outlet box. Ceiling fan wiring diagram this is a simple illustrated circuit diagram of ceiling fan. Ceiling fan wiring diagrams and connections how to connect the wiring when replacing a ceiling fan if the ceiling junction box only has a black and a white wire then it will attach to the black and blue of the ceiling fan and the pull chains will be the switch controls. Ceiling fan internal wiring diagram ceiling fan internal wiring diagram ceiling fan internal wiring diagram pdf ceiling fan internal wiring schematic every electrical structure consists of various distinct pieces. With these diagrams below it will take the guess work out.
Connect the green wire to your household ground wire copperbare wire. Fans will have different setups and brackets but all modern fans will allow you to hang the fan on the bracket so that you can connect the wires. Connect the white wires neutral wires from your fan and ceiling together. A question we often get asked is where can i find a wiring schematic or wiring diagram for my ceiling fan. This might seem intimidating but it does not have to be. While working with fan connections make sure you connect wire as shown or according to the diagram on the user manual.
A fan wiring diagram for us canada. Connect the black wires together. Otherwise the arrangement will not work as it should be. 1 red wire ceiling fan wiring diagram. Each part ought to be set and connected with different parts in specific way. With the below wiring diagrams you can install 90 of ceiling fans no matter the make or model.
Ceiling fan wiring diagram. The source is at the switches and the input of each is spliced to the black source wire with a wire nut. Pick the diagram that is most like the scenario you are in and see if you can wire up your fan.
