Electric pumps were designed to push fuel not pull it. There is a lot of confusion and misunderstandings about them.
Mounting An Electric Fuel Pump In 69 C10 The 1947

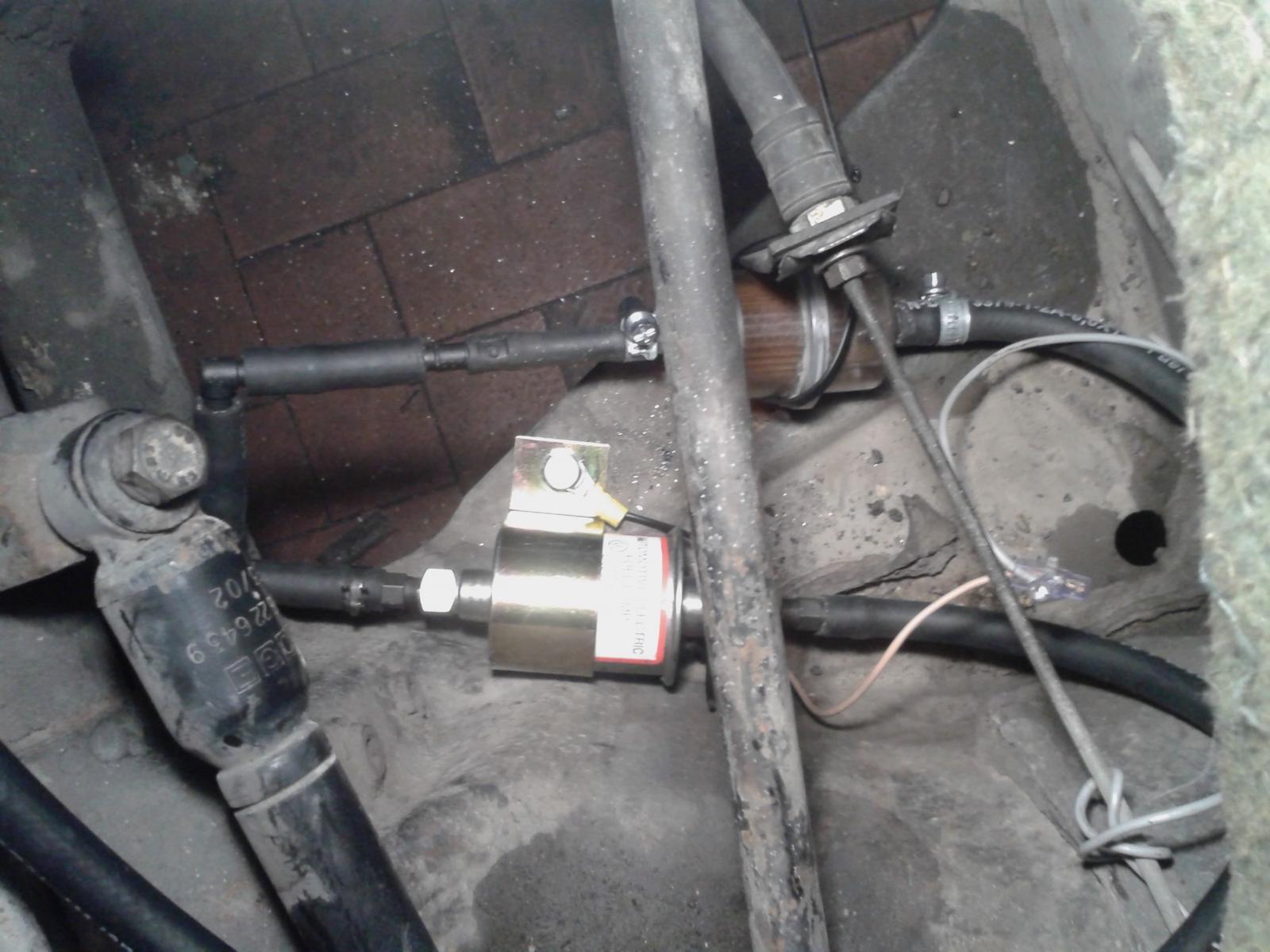

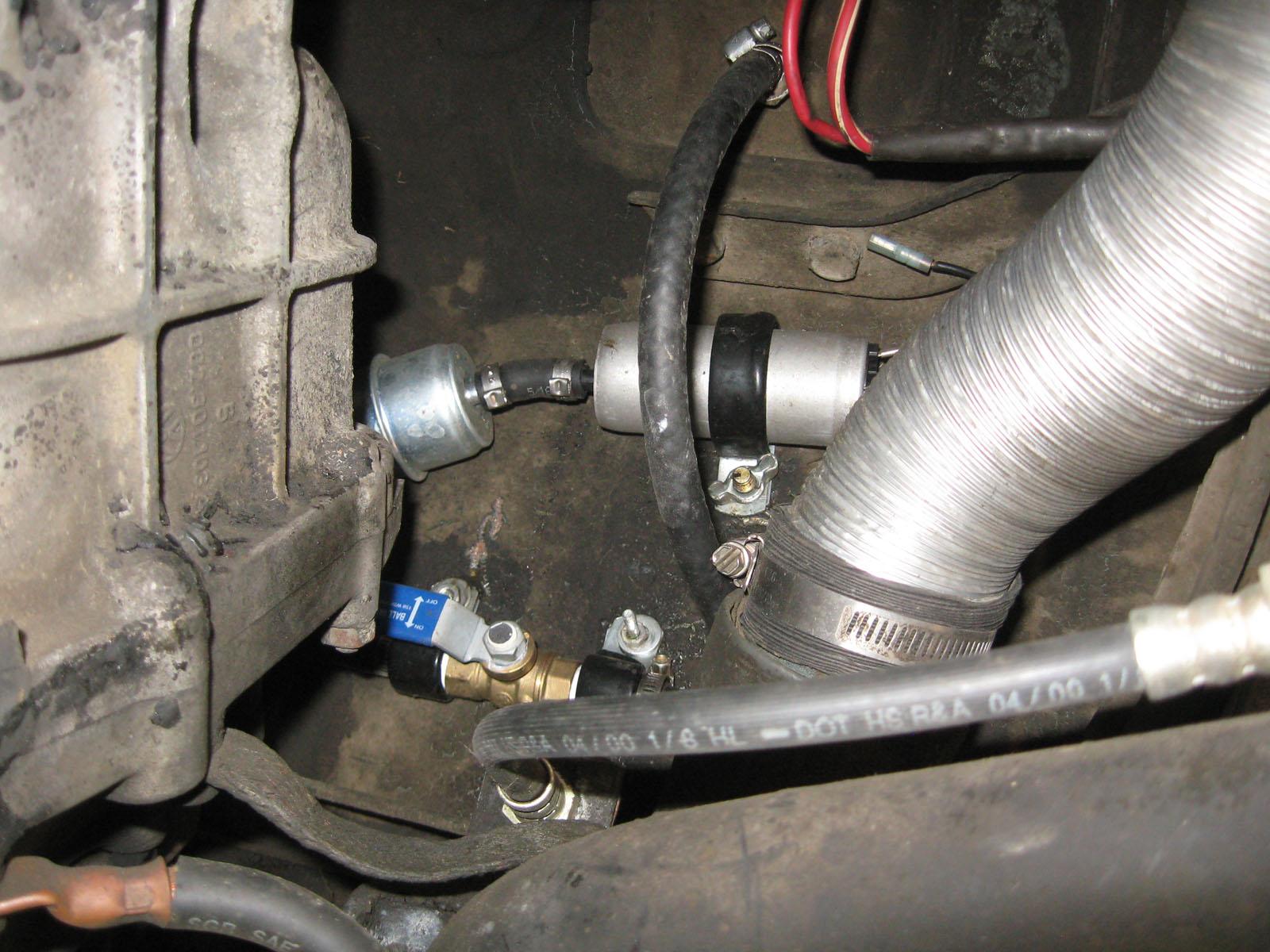

Electric fuel pump location. Mounting the electric pump in a high area. Locate your fuel pump test point which is usually near the fuel injectors and locate the point at which the pump hooks up with the filter injector rail. To avoid vapor lock the fuel pump should not be mounted in or around the engine compartment near exhaust system components or any area that may exceed 140 degrees farenheit or 65 degrees celsius. Mount the pump as low and as near to the tank as possible without putting it so low that it would get damaged by highway debris. Want an electric fuel pump to last forever and work right. Hook the pressure gauge to the fuel pump test fitting.
Mounting of the fuel pump should be directly to the frame when possible to ensure a good ground. Yanasa ama ventures 37185 views. Ok lets talk about electric fuel pumps. A wiring diagram is a simplified standard photographic depiction of an electrical circuit. If you solid mount the pump bolt it directly to a frame member or other suitable structure of the car it will transmit the noise and vibrations made by the pump into the. Is not a good method for most vehicles.
Fuel pump cpr testing a riding mower vacuum fuel pump small engine pulse fuel pump duration. Variety of electric fuel pump relay wiring diagram. The higher you mount the pump the harder it will work to siphon fuel into the system. How to do it right. It shows the elements of the circuit as streamlined shapes and the power as well as signal links in between the gadgets. Were going to show you how to install it and wire it up the correct way.

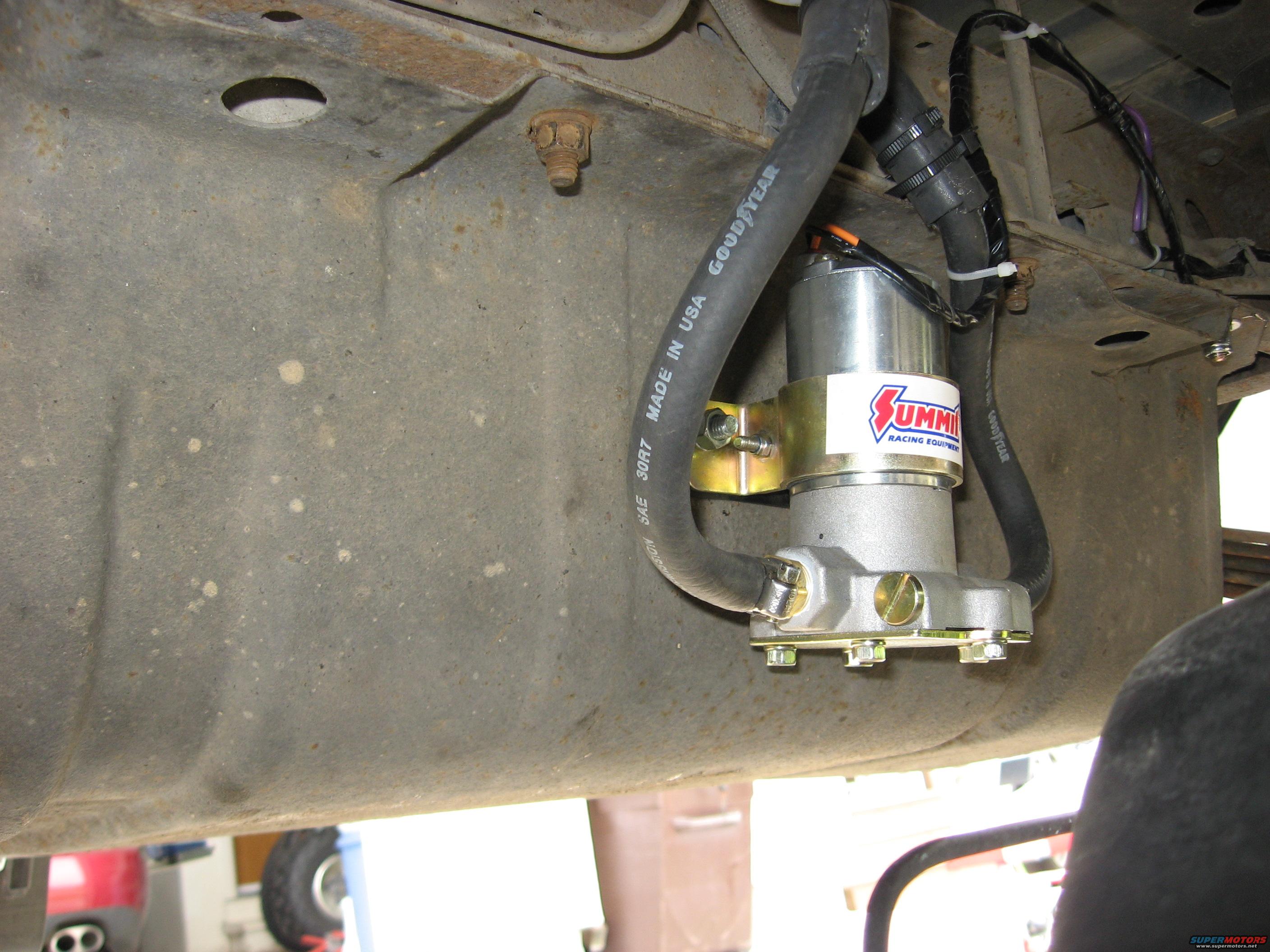

There should be a separation joint or a test port where the pressure gauge attaches. You want to keep it in a low place perhaps under the tank. That will shorten the pumps lifespan and itll under deliver fuel to the engine. Mounting an electric fuel pump directly to the vehicles frame or underbody etc.
