The ceiling fan motor does not have a ground wire. Connect the white grounded wire from the ceiling to the white wire from the fan.
How To Connect Ceiling Fan Wires With Pictures Wikihow
Hampton bay ceiling fan blue wire. A question we often get asked is where can i find a wiring schematic or wiring diagram for my ceiling fan. With these wiring connections the ceiling light can be operated from the ceiling fan pull chain or the wall switch. Connect the white wires neutral wires from your fan and ceiling together. Find the short green wire or the green ground screw on your ceiling fan hanging. With the below wiring diagrams you can install 90 of ceiling fans no matter the make or model. More about the blue ceiling fan wire if your ceiling fan does not have a light fixture then you can either cap off the blue wire up at the ceiling fixture electrical box or connect is as described above.
This connection allows you to power your lights from the second switch. The blue wire from the ceiling fan gets connected to the second live wire from the ceiling. The standard hampton bay ceiling fan without a remote control has a straightforward wiring diagram. When using standard ceiling mounting there are two green grounding leads. One from the ceiling mounting plate and one from the balldown rod assembly. The black and blue wires on the fan are twisted together with the black wire from the house wiring.
Lastly connect the blue wires together or the blue wire to the black wire for lights. Blue wire from fan twisted with blue wire from receiver. Connect the ground conductor of the 120v supply this may be a bare wire or a wire with green insulation to the green ground leads of the fan. Connect the green wire to your household ground wire copperbare wire. The black wire on the fan is the fan supply wire and the blue wire is the light supply line. Whether it be a hampton bay hunter or another brand of ceiling fan many fans have the same setup in terms of installation.

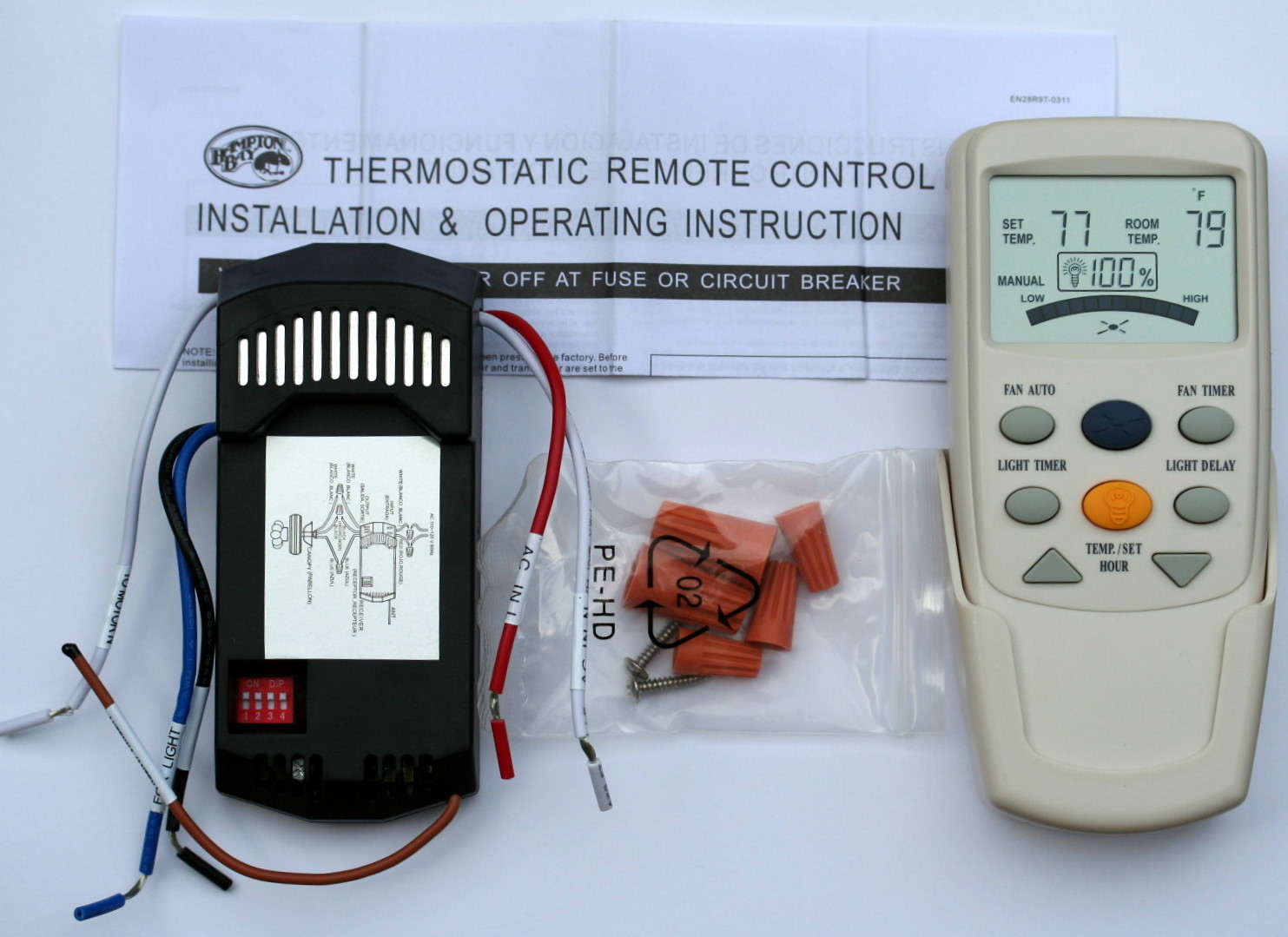

Wiring up a remote control ceiling fan is not a lot different however the receiver on the fan needs to be wired up in line with the fan itself. The blue wire is the hot wire for the ceiling fan light fixture. This second wire can vary in color but is most commonly red or black. Connect the black wires together. Wiring a hampton bay remote control ceiling fan. This means that power and ground from the house wires not only power the fan but power the receiver so that the receiver can obtain instructions from the fan remote and use those instructions to power the fan or light kit on or off.
