Connect the black wire from the motion sensor to the black wire that is coming from the power supply circuit breaker or fuse. With this type of assembly you may find that there will be a minimum of two neutral wires commonly black or blue that may be connected together.
Security Or Motion Sensing Light Installation Amp Repair

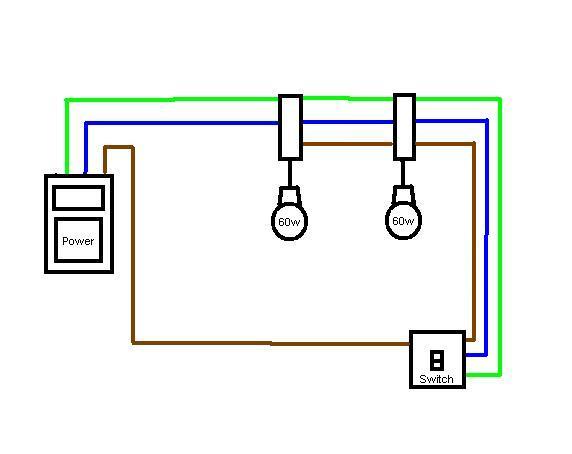

Porch light wiring diagram. Click on the image to enlarge and then save it to your computer by right clicking on the image. Assortment of porch lift vertical platform lift wiring diagram. The method used to install wiring will depend on the location and the type of outside lights and how many will actually be installed. Light fixtures in wetexposed areas must be listed for use in wet locations. Make sure that you only fit weatherproof lights that are suitable for outdoor use and that your circuit is rcd protected. Once outdoors you should supply your lights via 15mm² three core steel wire armoured cable swa.
Twist the two white wires together in the same fashion. How to install wiring for outdoor lighting. Twist the red insulated bare copper wire from the motion sensor together with the black wire from the light fixture. Motion sensor light wiring diagram wiring diagram for outdoor flood light awesome new motion sensor light wiring diagram australia inspiration best. One outside light on two. It shows the parts of the circuit as simplified shapes and the power and also signal links in between the gadgets.
If you are luckythere may be a light on either side of the front door. A wiring diagram is a streamlined traditional photographic depiction of an electric circuit. Wiring for outside fixture wiring. Lighting is also a safety issue. Uf cable can be direct buried without conduit with a minimum of 24 inches of earth cover. Type uf cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.
Finally connect the bare grounding copper wire back to the metal. Wiring buried inside rigid metal rmc or intermediate metal imc conduit must have at least 6 inches of earth cover. Backfill surrounding conduit or cables must be. Cover the bare copper wires with a wire nut. Wiring in pvc conduit must have at least 18 inches of cover. Depending on this information a separate dedicated circuit may not be necessary or required.
Outside lights may be controlled by motion detectors and photo cells switched from one or more locations or may be controlled by a simple home automation system. Wiring a 4 way switch subpanel installation this entry was posted in indoor wiring diagrams and tagged diagram do it yourself handyman handywoman home improvement home renovations home wiring house wiring light light switch power switch wiring wiring diagram. Its a very good idea to have dual bulb lighting fixtures which means at least two bulbs in every fixture. Collection of motion sensor light wiring diagram. Wall switch wiring diagram. They may be enclosed.
Image description working with steel wire armoured swa cable. Now switch the electricity off again. The cores of three core swa are coloured brown black and grey and you must fit greenyellow sleeving over the black core at every connection to show this is being used as earth. Again most porch electrical systems only have one to two at the most. Porches are normally not well lit nor do they have lighting options like dimmers or additional lighting that is operated from a different switch. Wiring diagram for outdoor motion detector light 2017 motion sensor wiring diagram for outdoor flood light.
Cover with a plastic wire nut. This is especially important if you only have one light. If this is not evident with a mains tester screwdriver and turning the electrical supply back on by probing either side of the switch where the wires are connected and secured with small brass screws ascertain which side of the switch is the live feed wire. Make a good electrical connection using the pliers. You should bury swa.
