Can you get me a part number and price on these and avaialbility please. I cant remember what functionality the module gives you exactly but it wasnt something i needed so i just got the switches.
Switch Mounting Options Page 3 Dodge Cummins Diesel Forum

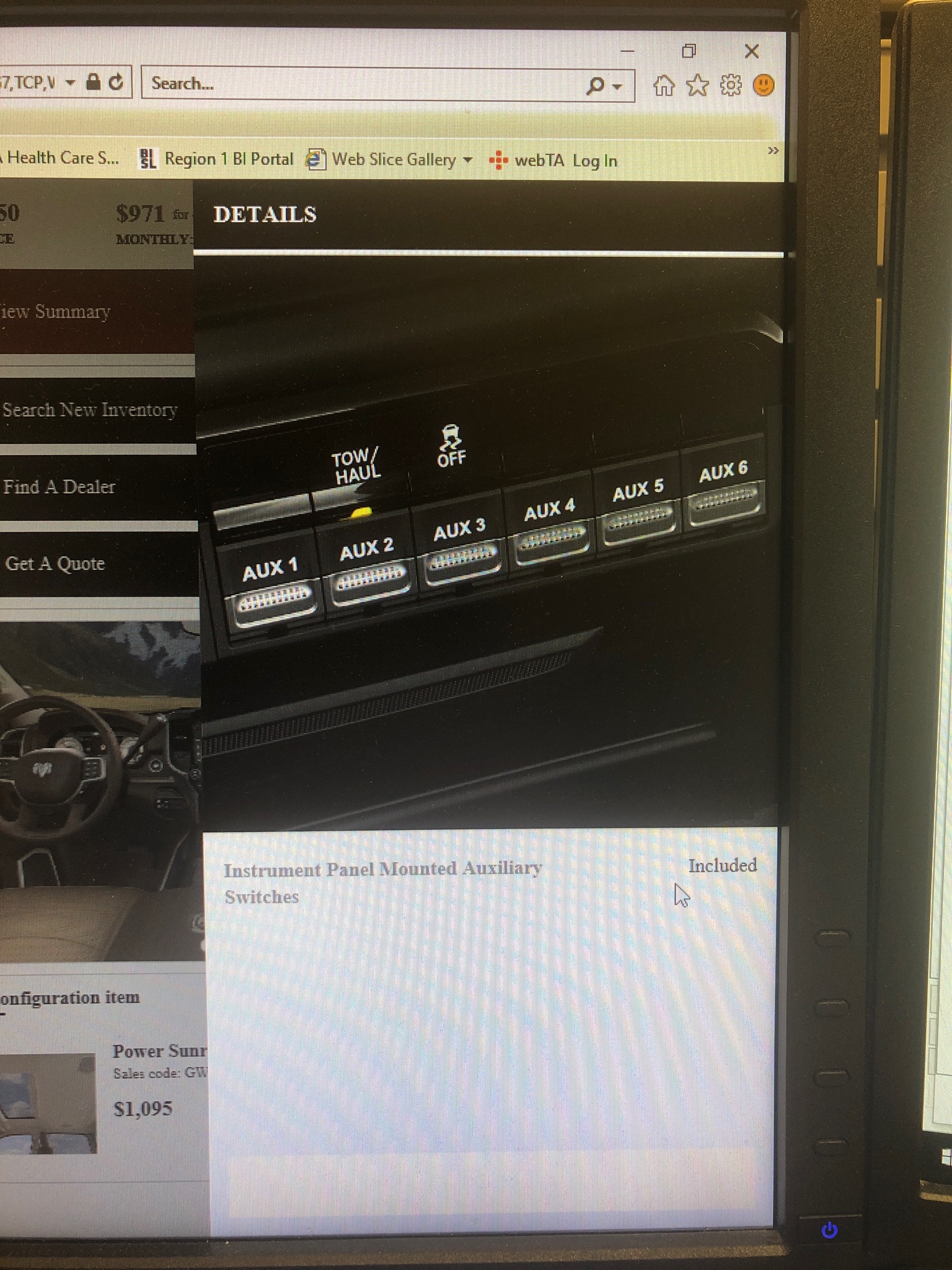

Ram 2500 aux switch panel. The aux pdc contains 7 relays related to auxiliary functions. I have seen on a ebay a aux switch panel that fits below the heatac controls. Adds 5 aux switch buttons that can be wired into accessories like light bars or cb radios. Ram 25003500 vehicles have 5 auxiliary switches. This is incorrect i ordered my truck with the aux switches without the upfitter module. I would think it would be if you get the upfitter module you can only have the aux switches but not the other way around.
These switches are integrated into the vehicles electrical architecture lin signals with their outputs found underhood in connectors located on the auxiliary pdc. There is also an upfitter ignition relay as well. I have a 2012 outdoorsman with the pre cloth 6040 bench and column shift and manual ac controls. This switch panel is for trucks equipped with. The fuses for the outputs can be moved to provide the necessary current depending on the specific aux output load. Please note that these switches are hard wired to only switch power 12v via their relays.
6 relays are for aux switch outputs on non pto vehicles. 2019 upfitter schematic 25003500 pickup box on with aux switches lhl a m h c b d f j a aux pdc auxiliary power distribution center relayfuse box underhood b c d j h 2 upfitter connectors light and dark gray pdc main power distribution center relayfuse box underhood. It appears you pop out a panel that says ram and this fits in place with 4 aux switches. Vehicle applications aux switch panel from a ram 2500 that is plug and play with the ram 1500. On pto prep vehicles there are 5 aux relays and a pto relay.
