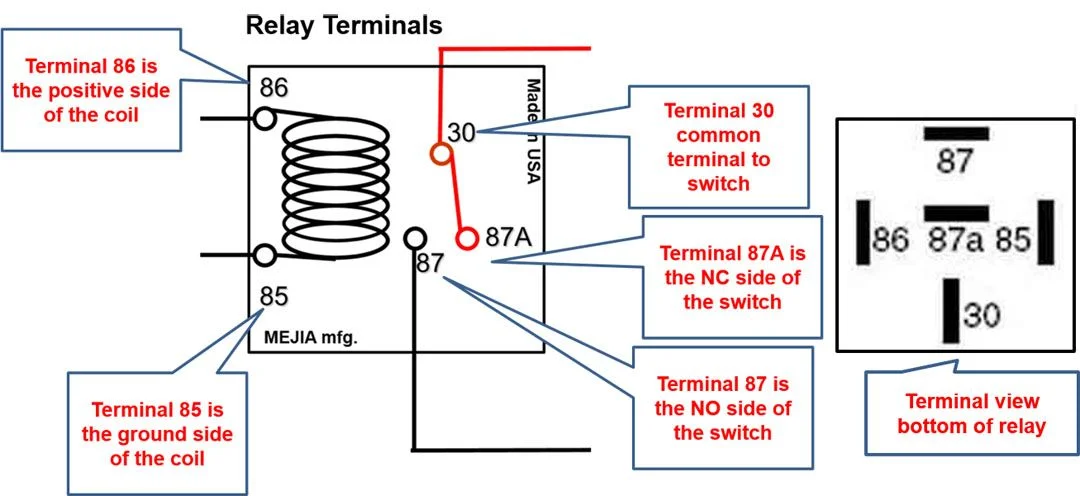

What is 87a on a relay used for. 87a normally closed contact. Normally closed 87a indicates when the relay is not energized on this pin is connected to the common terminal or a closed circuit. Normally open or normally closed. Item 5 cr123c466a ge heater element relay cr123c466a ge heater element relay. Item 6 general electric cr123c466a overload heater element lot of 3 thermal relay general electric. When the relay is at rest 87a is connected to 30 and when the relay is energised 87 becomes connected to 30 but never both at the same time.
5 pin relay 5 pin relays provide 2 pins 85 86 to control the coil and 3 pins 30 87 87a which switch power. The longer the wires more electrical current is lost to this resistance. Pins 87a and 87 are not connected to one anotheronly to pin 30which is why it is referred to as the common terminal. 87b normally open contact. One of the relays best features is its ability to use a very small amount of current to switch large amount of current. Item 3 2 ge overlaod relay heaters thermal unit cr123 c466a s24 1 55 2 ge overlaod relay heaters thermal unit cr123 c466a s24 1 55 1299.
The size is 25 x 25 x 25 cm and it has connector 30 85 86 and 87a. It has an old logo but i forgot the brand. Just an idea on how to wire each relay up. Thats my theory but is it right. While relays can be used for virtually any task there are some very useful simple. 86 relay coil 87 common contact.
Ground not connectedrelay not energized. A normally open relay will switch power on for a circuit when the coil is activated. 12 volt light relay made in w germany in used condition. 86 must remain a positive designation if the diode tracks according to the diagram example below. Item 4 general electric cr123c466a 480v 461a useds general electric cr123c466a 480v 461a useds. Changeover relays with diode.
The first application of relays was in long telegraph lines where the weak signal received at an intermediate station could control a contact regenerating the signal for. 4 pin relay 4 pin relays use 2 pins 85 86 to control the coil and 2 pins 30 87 which switch power on a single circuit. There are 2 types of 4 pin relay available. The armature contacts both terminal 87 and in this case 87b at the same time when the coil is energised creating a dual no output. Relay with double output. Devices such as headlights or climate control allows the circuit to be routed in the shortest most direct route.
This ability helps to make the modern vehicles electrical system as efficient as it is. Ground connectedrelay energized switch moves from left to right relay applications. After staring at some more diagrams i think that the reason there are two 87 pins 87 87a is because 87 is set up for a circuit that is normally open the contact rest on 87a and 87a is set up for a circuit that is normally closed and when the cicuitrelay is energized it opens the contact. Used for suppressing coil voltage spikes 85 and 86 terminals become polarity sensitive. A dpdt ac coil relay with ice cube packaging. The relay is stamped with 899648 12v max 2a 90 160 032 made in w germany.
Terminal 87 is linked to pin number 87b giving double outputs from the single no contact. Relay with dual contacts. Two circuits terminals 87 and 87a have a common terminal 30. When electrical current flows thought wire the wire has resistance which limits the flow. I know all about this stuff. Relays are used wherever it is necessary to control a high power or high voltage circuit with a low power circuit especially when galvanic isolation is desirable.
