Step 5 attaching the headlamp adaptor choose the headlamp adaptor supplied in the kit which suits your plug and connect this to the factory plug. Locate the back of your high beam headlight globe on the side closest to the relay and remove the plug from the globe.
Wiring Spotlights To High Beam Hilux H1 Wiring Diagram

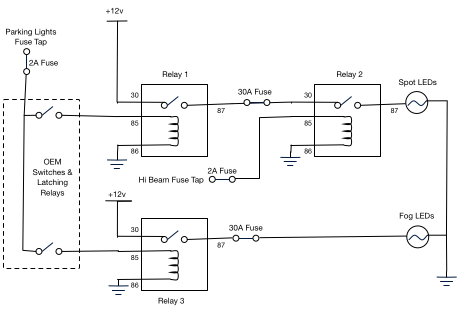

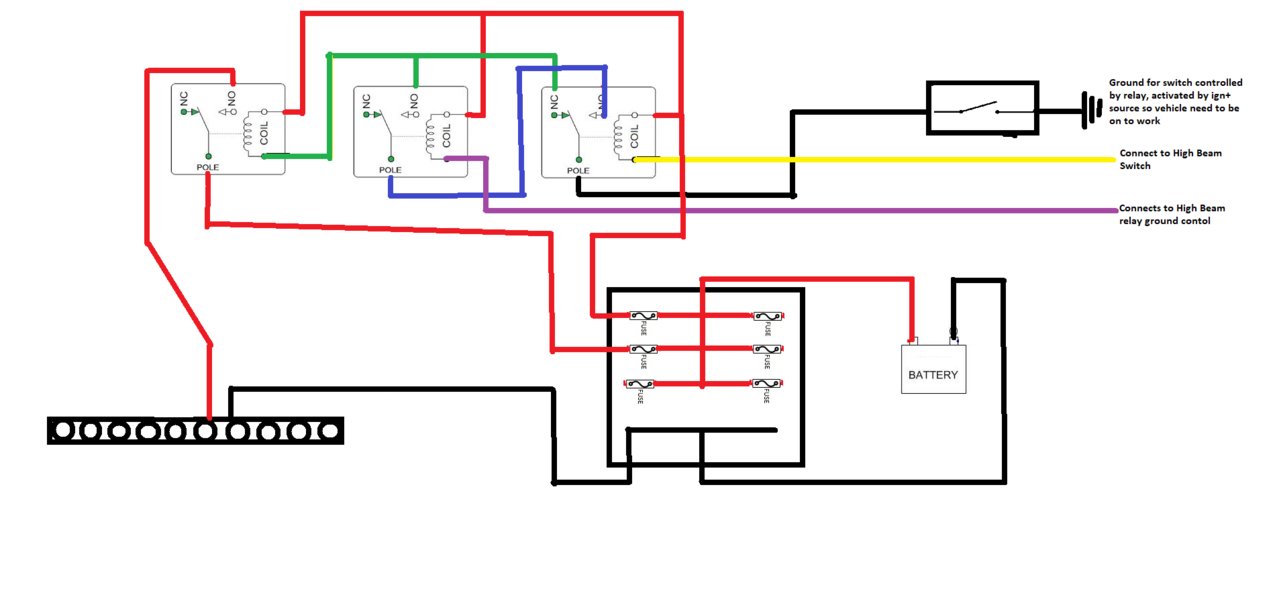

Wiring light bar to high beam and switch. With the high beam and the light bar on put the switch in the off position. Hi everyone hoping someone has done thisi have a light bar i want to put on top of my nudge bar to compliment the hid headlights in my gls as i have found the high beams have no depth even though low beam is fantastic. The other on position will be tied into the high beams. You can use the right at the light to turn the relay on and off. Just use a test light or meter to find out the the for the hi beam and splice into it. We have finally created a detailed and step by step guide to hard wiring a light bar to a vehicles high beams using a three way switch and a relay.
Excavators fellers rollers bulldozers cranes core material. Fitting light bar to mq gls. The fog light switch in the ds steering column is a perfect way to do this. I would not recommend tapping the fog light. 12vdc 40a switching relay. What you got is a 12v to the relay controlled by a switch that allows the power to flow to the light bar.
Up to 3 metres of wiring. 2 leads for two led lights bar. The light bar needs to be triggered by activation of your high beam. Off road vehicles atvs trucks boats buses. 3 way switch how to wire your light bar to work with your high beams by itself onoffon switch. This will allow me to have the light on at any time regardless of if the truck is on.
Press button onoff switch. By wunsie on sat may 28 2016 1045 am. As i understand it i just need to tap the high beam wire with one coming from the switch. Maybe you want to run your fog lights in conjunction with your high beams. Maybe you removed your fog lights and installed a nice aftermarket led light bar or some nice 8 brighter than the sun bombdigities and now you need a switch to control the relay. How to connect a light bar to high beams using a three way switch 2014 silverado.
If your light bar switches off and your high beams remain on you have successfully wired in your own led light bar. The wait is over. Light barfog lightrock light. I was hoping if someone with the same ute as mine can tell me if they used the oem mitsubishi driving light harness or did they simply get a sparkie to wire up their spotties and if they did can you. 12v 24v wiring loom harness offroad led light bar. First let me say that you should have your aftermarket lights wired to the battery via an appropriate relay and fusing.
So when you flip your switch in the cab the relay circuit will close and allow power to flow to the light bar from the battery. The light bar should not illuminate until you flick on the high beam. Step 13 finished. Bare stranded copper wire. Thats exactly what i did low amp hot from the high beam side of the switch powers a relay and turns on the light bar. One on position will be wired directly to a power source with a fuse in line.
Hook the red wire with the inline fuse to your battery and the heavier black to a good ground. Its a beautiful thing. This guide was filmed on my.
